How To Remove Paint and Rust From a Car Before Repainting

Remove automotive paint only where it is lifting, cracked, chemically damaged, hiding corrosion, or too unstable to support a new finish. Clean the panel before sanding; remove the failed coating and rust with P80 or a nonwoven stripping disc, then refine bare steel to the primer manufacturer's required scratch. PPG specifies P120–P180 on bare metal before OMNI MP17x epoxy primer. Metal with holes, heavy flaking, or major thickness loss must be replaced rather than coated.

This procedure is for steel exterior body panels. Aluminum, galvanized steel, fiberglass, Sheet Molded Compound (SMC), and plastic require substrate-specific preparation.

Do You Need to Strip the Entire Panel?

Do not take a complete panel to bare metal merely because one small area has failed. Sound original equipment manufacturer (OEM) paint is a stable substrate when it is cleaned, sanded, and approved for the next coating system.

Strip to bare metal when:

-Rust is visible beneath or around the paint.

-Paint is lifting, cracking, bubbling, or separating between layers.

-Several unknown refinishes have created excessive film build.

-Solvent damage, contamination, or a failed repair extends through the coating stack.

-A restoration requires inspection of the complete steel panel.

Leave sound paint in place when it remains firmly attached, and the repair can be feather-edged into it. A feather edge is a smooth taper through the coating layers with no ridge that can be felt by a fingertip.

Panel condition	Best starting method	Typical starting point	Main risk to control
Localized surface rust or paint failure	Dual-action sanding or nonwoven stripping disc	P80 for controlled removal	Deep scratches at edges and body lines
Thick paint or several refinish layers	Nonwoven stripping disc or labeled automotive chemical stripper	Product-specific	Heat, residue, and damage to seams or nearby materials
Rust inside pits, seams, or complex shapes	Spot blasting or an extra-cut stripping disc	Media and pressure matched to the panel	Warping or excessive metal removal
Sound paint surrounding a small repair	Feather-edge the transition	P80 followed by P120–P180 or the primer maker's sequence	Leaving a hard paint edge
Pinholes, scaling, or weak perforated steel	Cut out and replace the damaged metal	Not applicable	Covering structural loss instead of repairing it

A dual-action (DA) sander both spins and oscillates the abrasive. It is easier to control on broad exterior panels than a rigid grinding wheel, but it can still thin edges and flatten body lines when held in one place.

What Materials Are Needed Before Starting?

Prepare the complete process before exposing bare steel:

-Soap and water for the first wash

-Automotive wax and grease remover

-Clean, low-lint towels

-P80, P120, and P180 abrasives, plus any grit required by the selected primer

-A DA sander, sanding block, or approved stripping tool

-Compressed air with adequate water and oil control, when available

-Masking paper, film, and automotive masking tape

-Compatible epoxy primer and catalyst

-Eye, hearing, skin, and respiratory protection selected for the actual coating and dust hazards

Do not begin stripping if the correct primer is not ready. Bare steel should not remain exposed longer than necessary because moisture can begin new corrosion before visible orange rust appears.

Step 1: Clean the Panel Before Sanding

Wash off dirt and water-soluble contamination, then dry the panel completely. Follow with an automotive surface cleaner using the two-towel method:

1. Wet one clean towel with the cleaner and wipe a manageable section.

2. Before the cleaner evaporates, lift the dissolved contamination with a second clean, dry towel.

Klean-Strip Prep-All GSW362 Wax and Grease Remover is labeled for use on metal, plastic, and fiberglass before sanding and painting.

Cleaning must come before abrasive work. Sanding a dirty panel can grind silicone, wax, tar, grease, and road film into the finish. Clean again after sanding with the cleaner and wiping procedure approved by the primer manufacturer.

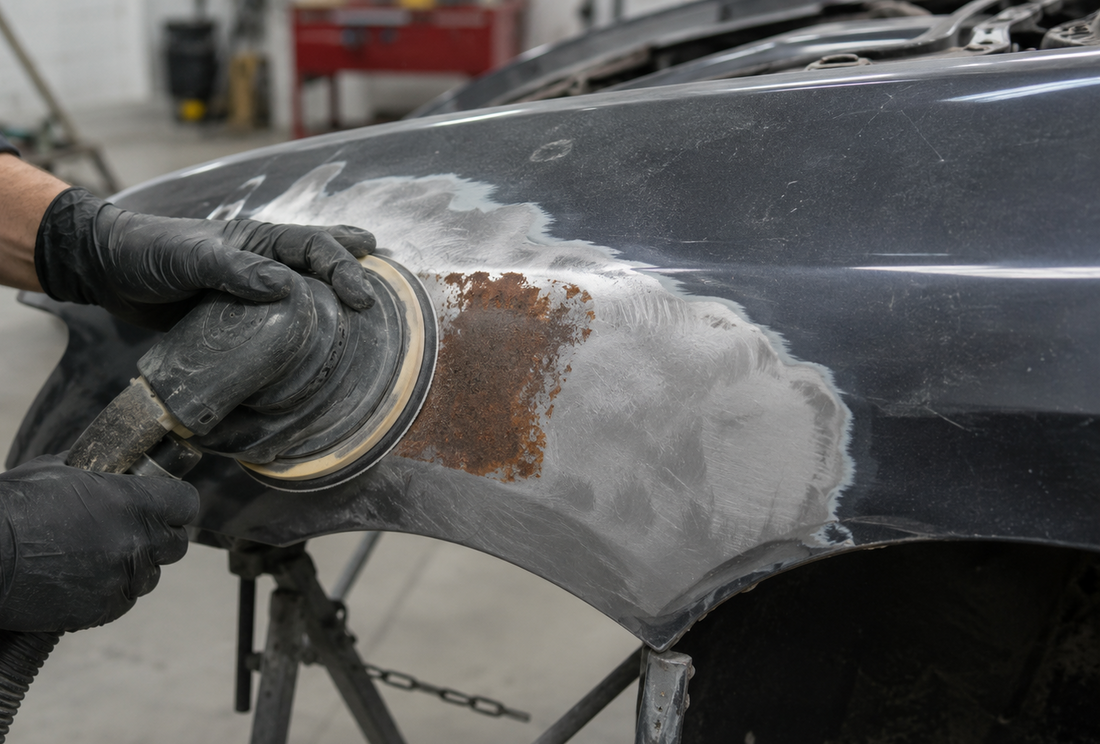

Step 2: Remove Failed Paint Without Thinning the Steel

Begin at the failed area and work outward until every remaining coating edge is firmly attached. For localized repairs, P80 is a controlled starting point because it removes paint and light surface rust without the exceptionally deep scratch left by P40.

High Teck 80-Grit PSA Sanding Discs can be used on compatible DA equipment for paint removal and the first stage of repair preparation. Keep the sander flat, moving, and away from sharp panel edges. Do not tilt the disc to make it cut faster.

P40 may be justified for heavy coating buildup or severe localized material removal, but it is not the default grit for stripping a complete modern body panel. A P40 scratch must be removed through a deliberate progression before primer.

For broad panels or contours, a nonwoven clean-and-strip disc can remove coatings with less risk of cutting deep grooves than a rigid grinding disc. 3M states that its Clean and Strip XT Pro Extra Cut discs remove heavy rust, rust pits, and thick paint while the open web resists loading and works toward bare metal.

Step 3: Remove Rust Until the Remaining Metal Is Solid

Surface rust is not removed when the loose orange scale is gone. Continue until the repair shows clean, solid metal with no loose oxide at the center or edge of the damage.

Rust pits require closer inspection. A DA disc may clean the top surface while leaving corrosion in the bottom of the pits. Use a stripping disc, small abrasive tool, or controlled spot blasting method that reaches the recesses without thinning the surrounding sheet metal.

Stop abrasive removal and replace the damaged section when the steel:

• Contains visible pinholes or perforation

• Flakes away in layers

• Has lost enough thickness to feel weak or deform easily

• Remains deeply pitted after the loose corrosion is removed

• Is rusting from the rear side of a hem, seam, or inaccessible cavity

Rust converter is not a substitute for removing accessible corrosion. Use a converter only when its technical data sheet specifically permits the intended substrate, primer, filler, and topcoat sequence. Do not assume that rust converter, self-etching primer, epoxy primer, and body filler can be stacked together.

Step 4: Feather the Paint Edge and Refine the Bare Metal

After the rust and failed paint are gone, taper the surrounding sound finish so no abrupt edge remains. A practical sequence for many repairs is:

1. P80 to remove the failed coating and establish the repair boundary.

2. P120 to reduce the P80 scratches and widen the feather edge slightly.

3. P180 to refine the bare steel when the selected primer permits it.

Each finer step should extend slightly beyond the previous scratch pattern. Do not jump directly from a deep P40 scratch to P180 and assume the finer paper has erased it. Clean the surface and inspect it under strong, angled light between stages.

The exact final grit belongs to the primer system, not to a universal chart. The PPG technical data sheet for OMNI MP17x epoxy primers specifies P120–P180 on bare metal and P220–P320 on old finishes and body filler.

Step 5: Inspect the Bare Panel Before Priming

Remove the abrasive dust and inspect the repair dry. The panel is ready for primer only when:

• No loose paint remains at the repair boundary.

• The feather edge cannot be felt as a hard ridge.

• No orange, brown, or loose black corrosion remains in pits.

• Every coarse abrasive scratch has been refined to the primer's approved grit.

• The steel is solid and free of pinholes.

• The surface is clean, dry, and untouched by bare hands.

Fingerprints contain oils and moisture. Wear clean gloves during final cleaning and handling. Do not use household glass cleaner, mineral spirits, gasoline, or an unidentified solvent as the final panel cleaner.

Step 6: Protect the Bare Steel With the Correct Primer

Bare steel needs a corrosion-resistant coating that is approved for the substrate and every layer that follows. A two-component epoxy primer is a common choice because it isolates properly prepared metal and provides a compatible foundation for later refinishing steps.

The OMNI MP170 Gray Epoxy Primer Kit with MP175 Catalyst is designed for properly cleaned and sanded bare metal, fiberglass, and painted surfaces. PPG specifies a 2:1 primer-to-catalyst ratio, an optional addition of up to one-half part acetone, and a 15-minute induction period before application. The same data sheet states that MP17x epoxy must be scuffed and reapplied if it sits longer than 72 hours before topcoating.

Those numbers apply to the OMNI MP17x system only. A different epoxy, direct-to-metal primer, self-etching primer, or primer-surfacer can require a different grit, mix ratio, flash time, and recoat window. PPG also states that MP17x epoxy should not be applied over MP176 etch primer.

When Is Chemical Stripping the Better Choice?

Chemical stripping can make sense when a large steel panel carries several paint layers and mechanical sanding would consume excessive time or abrasive material. It can also reach some contours without grinding the metal.

Use only a stripper labeled for the exact coating and substrate. Protect seams, adhesives, plastic, fiberglass, glass, and adjacent finishes unless the label approves contact. Remove or neutralize residue exactly as instructed before sanding or priming. Stripper trapped in a seam can attack later coatings from underneath.

Chemical stripping does not remove structural rust. After the coating is gone, corroded areas still require mechanical removal, blasting, or metal replacement.

When Is Media Blasting the Better Choice?

Media blasting is useful for widespread corrosion, complex stampings, brackets, frames, and pits that a flat sanding disc cannot reach. Exterior sheet metal requires controlled pressure, distance, angle, and media because excessive energy or heat can distort a panel.

Blasting also creates a surface profile. Confirm that the resulting profile is acceptable for the selected primer, and remove all trapped media from seams and cavities before coating.

The dust hazard changes with the old coating, base metal, and blast media. OSHA notes that abrasive blasting dust can contain respirable particles and toxic contaminants from all three sources. Unknown or older coatings should be assessed before sanding, grinding, heating, or blasting them.

What Safety Equipment Is Required for Paint and Rust Removal?

Mechanical stripping produces flying debris, noise, sparks, and fine dust. Chemical stripping can add corrosive or solvent hazards. The minimum work controls depend on the tool and the coating being removed, but the process normally requires:

-Guarded tools and abrasives rated for the tool's maximum speed

-Safety glasses plus a face shield where flying debris is possible

-Hearing protection for powered sanding, grinding, or blasting

-Gloves and clothing appropriate for the abrasive or chemical product

-Dust collection or local exhaust ventilation

-Respiratory protection selected from the coating's safety data sheet and the measured or reasonably anticipated exposure

A generic paper dust mask is not a complete answer for unknown paint dust. Stop if the coating may contain lead, chromates, or another toxic pigment and the hazard has not been identified.

How This Guidance Was Verified

This procedure was checked on August 27, 2026 against three primary sources:

-3M manufacturer guidance for nonwoven rust- and paint-stripping discs

-PPG's current linked technical data sheet for OMNI MP17x epoxy primers

-OSHA's abrasive-blasting ventilation standard covering respirable dust from coatings, substrates, and blast media

The grit sequence in this article is a general repair path until a named coating system is selected. The current technical data sheet for the exact cleaner, abrasive process, primer, filler, sealer, and topcoat overrides general guidance.

Final Check Before Primer

A properly stripped repair ends at clean, solid metal—not merely a smoother rust stain. Remove only the coating that cannot support the repair, eliminate corrosion from the full depth of accessible pits, feather every stable paint edge, and refine the scratch to the primer manufacturer's requirement. Replace perforated steel instead of burying it under filler or primer.

Once the panel passes the inspection checklist, clean it again and apply the approved corrosion-protection system within its stated conditions and recoat window.
